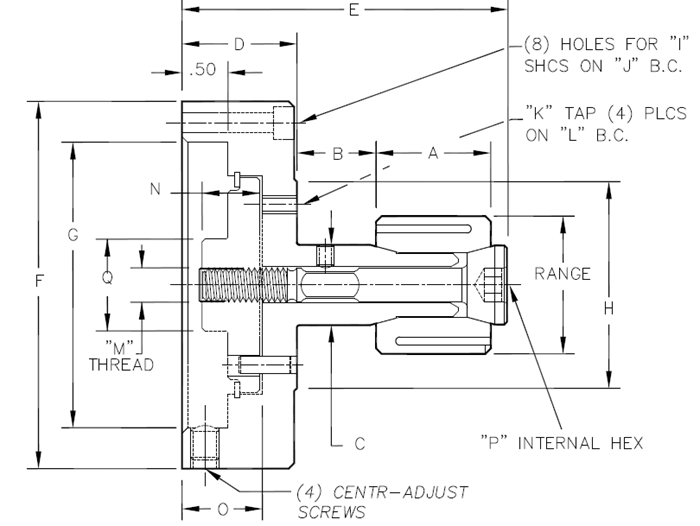

Line Drawing - Click to Enlarge
6-ACFMDI-4 Double Taper
Model: 6-ACFMDI-4
Product Details
| Actuation | Manual |
| Flange Assemblies (in) | 6.50 |
| Min. Grip Dia. (in) | 0.94 |
| Max. Grip Dia (in) | 2 |
| Maximum Expansion (in) | 0.020 |
| Loading Clearance (in) | 0.0025 |
| Max Part Tolerance (in) | 0.0160 |
| Max Pull Force # | 6000 |
| A (in) | 1.25 |
| B (in) | 0.86 |
| C (in) | 0.875 |
| D (in) | 1.25 |
| E (in) | 3.48 |
| F (in) | 6.50 |
| G | 5.360 |
| H (in) | 2.25 |
| I A | 0.31 |
| N (in) | 0.312 |
